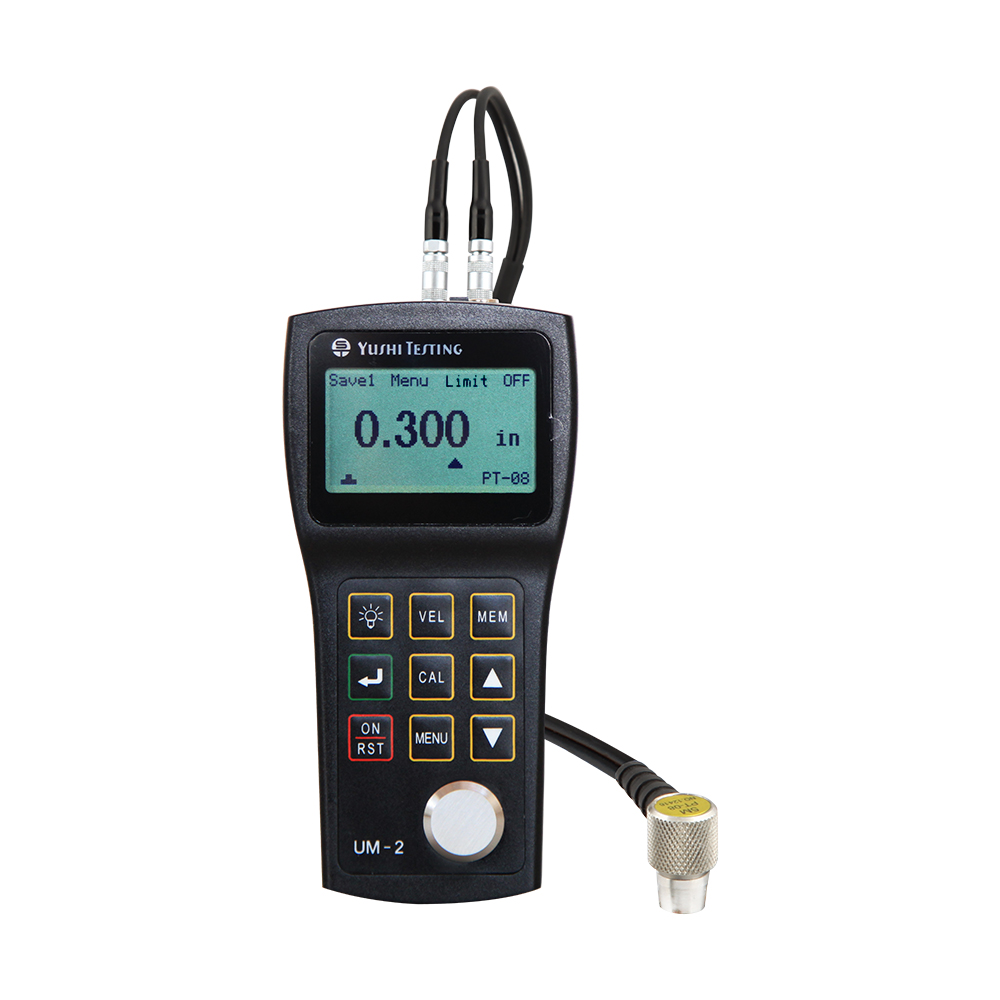

YUSHI UM-2 Series Ultrasonic Thickness Gauge
Reliable, Portable, and Coating-Friendly

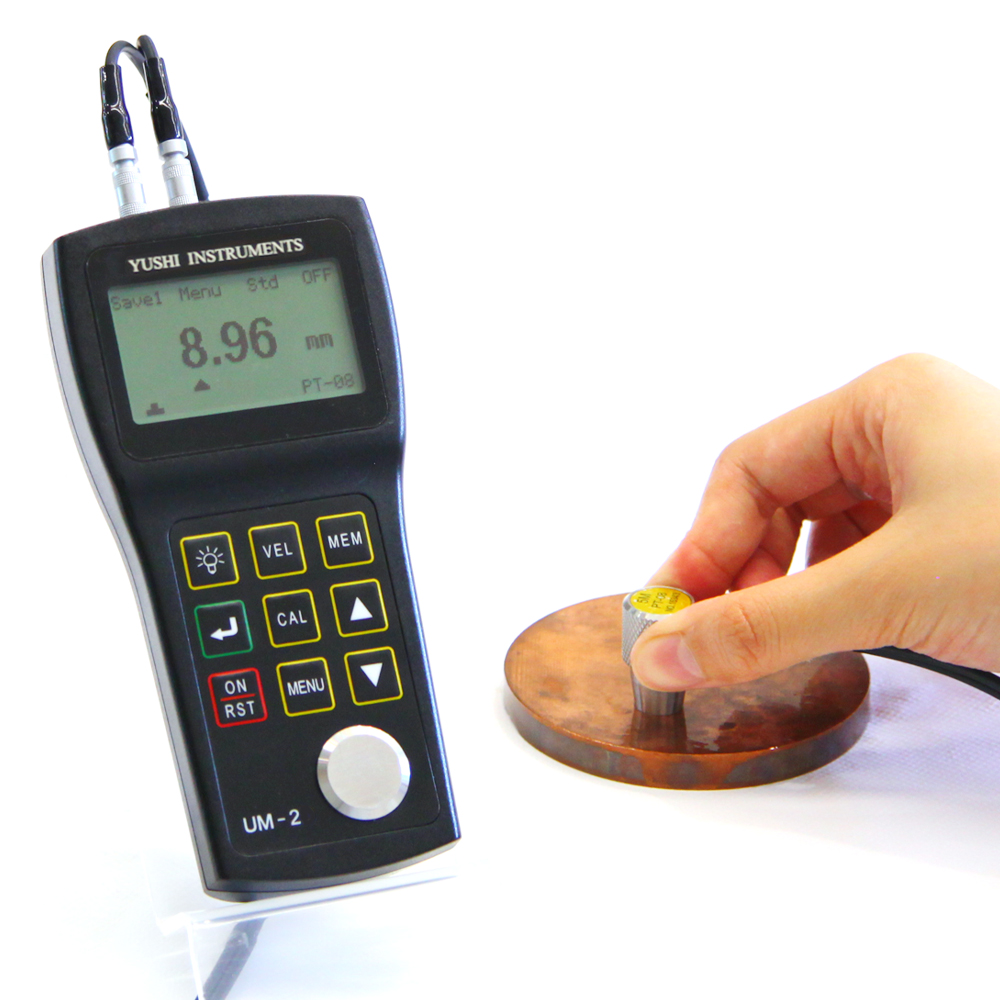

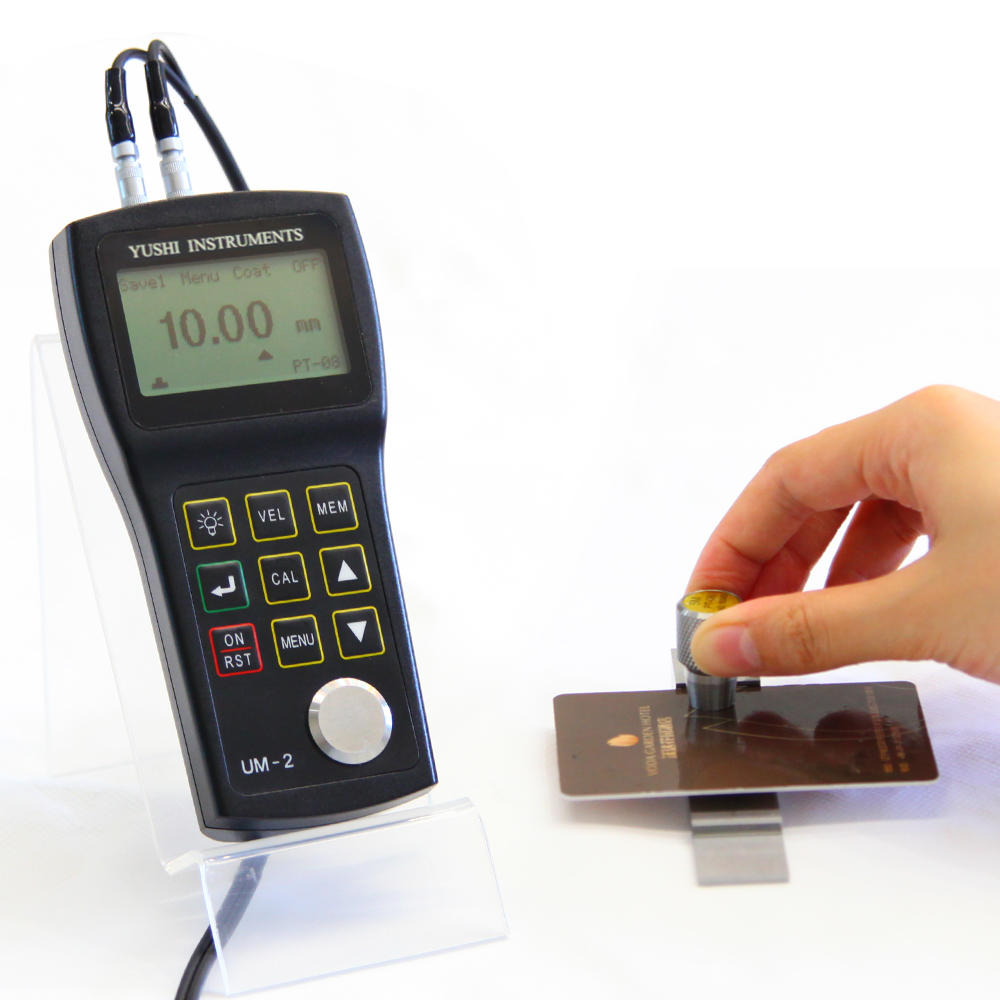

The YUSHI UM-2 Series is a hand-held ultrasonic thickness gauge designed for quick, reliable, and non-destructive thickness measurements on a variety of materials. With advanced signal processing and stable performance, the UM-2 series is ideal for manufacturing, quality control, and corrosion inspection.

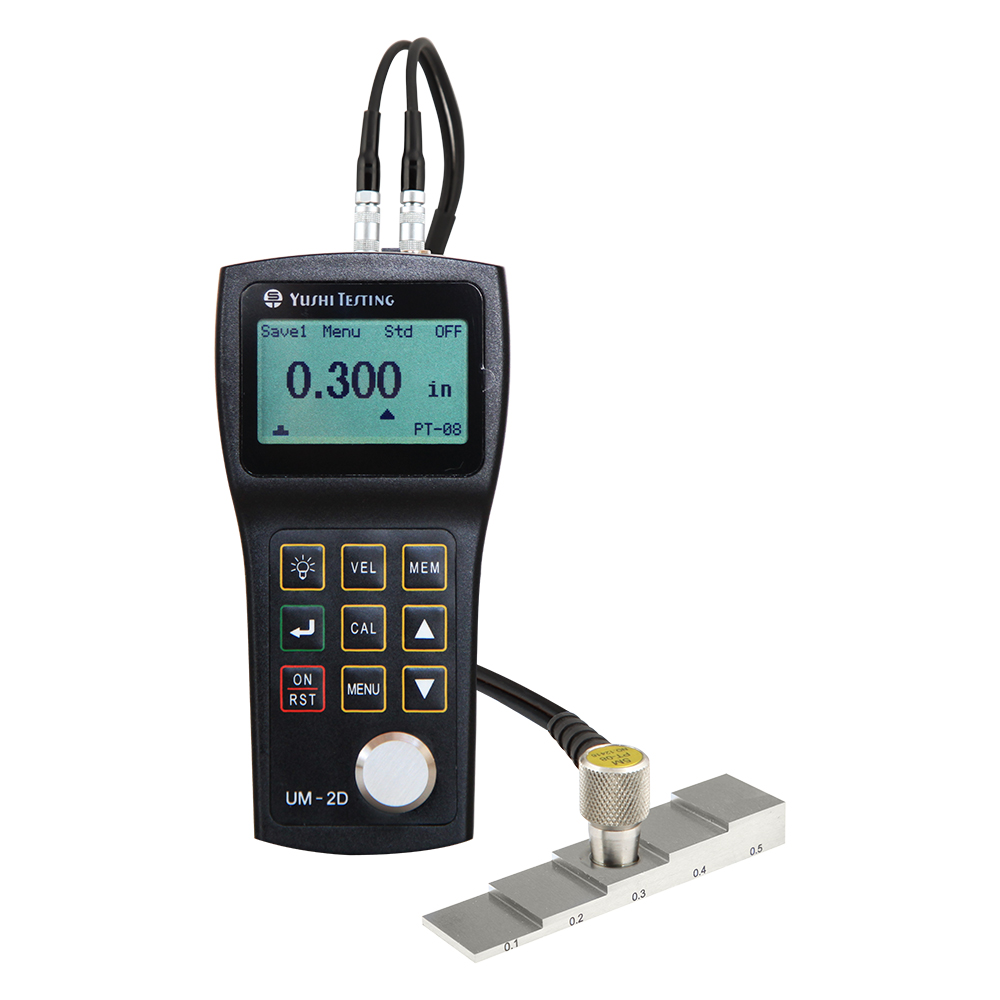

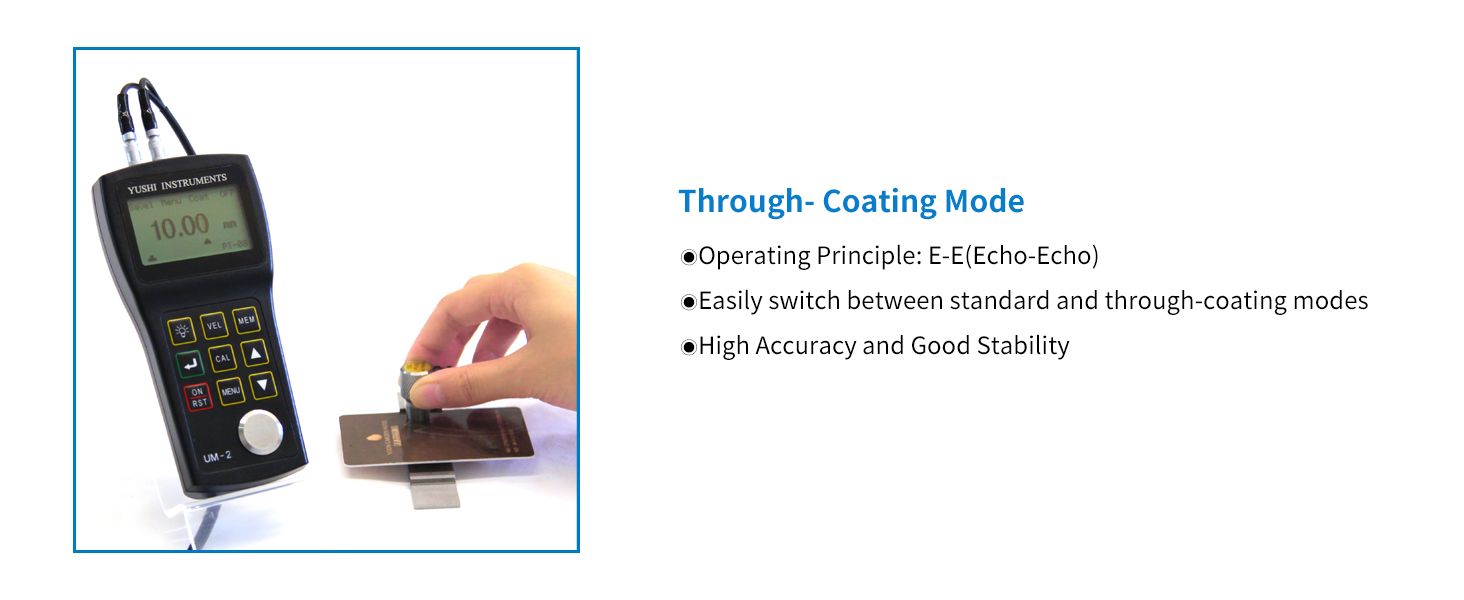

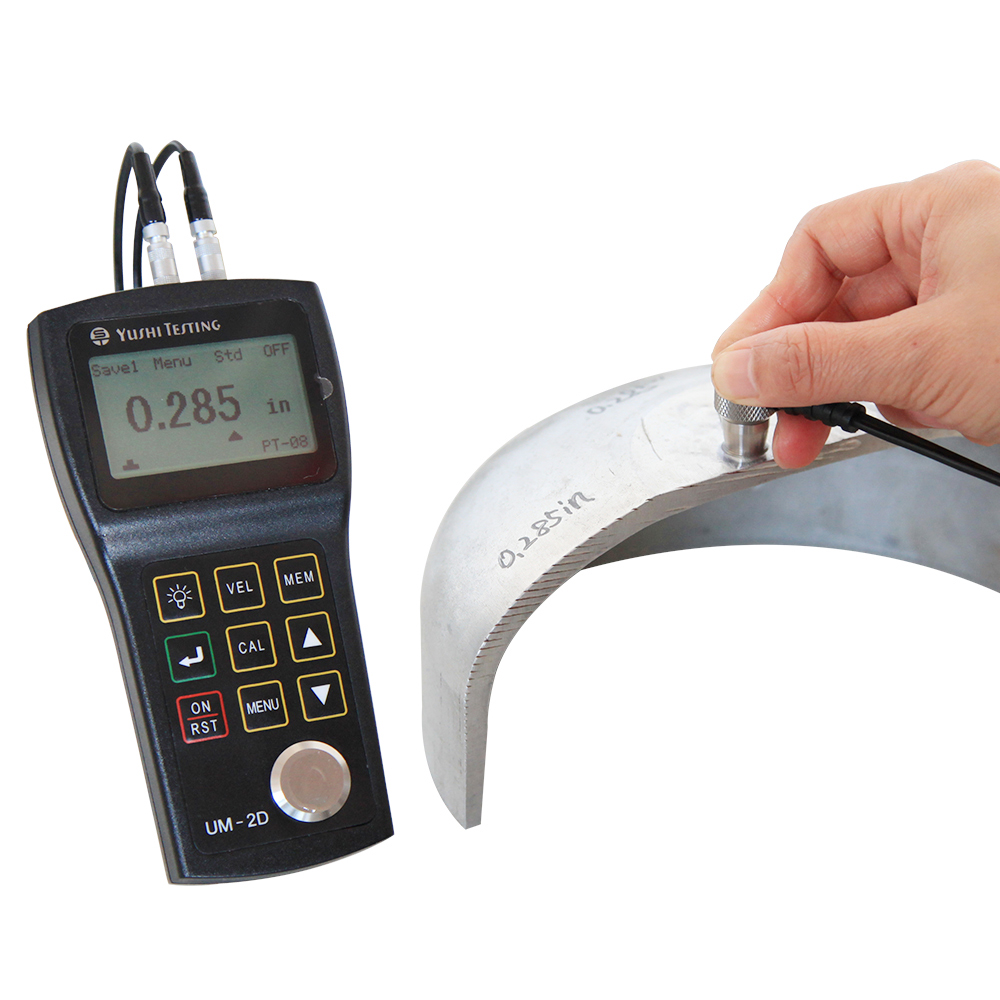

For painted or coated surfaces, the UM-2D model supports through-coating measurement, allowing users to get accurate base material readings without removing paint or coatings.

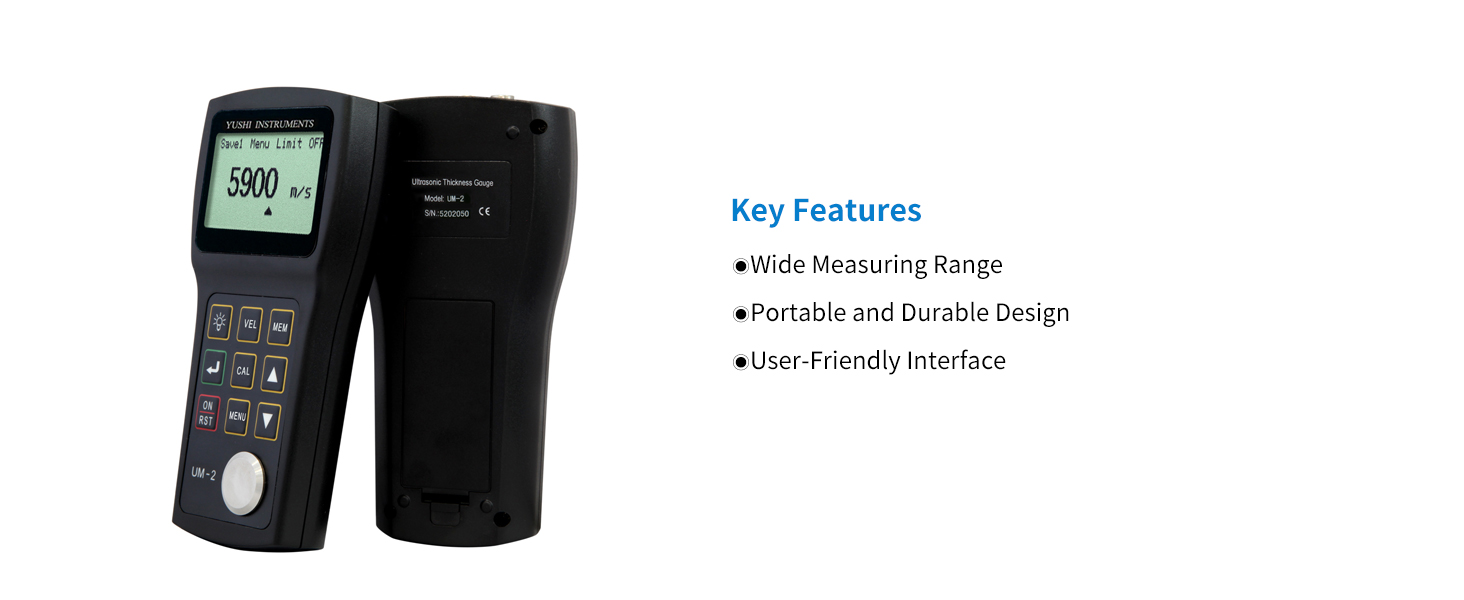

Key Features
Measurement Range:

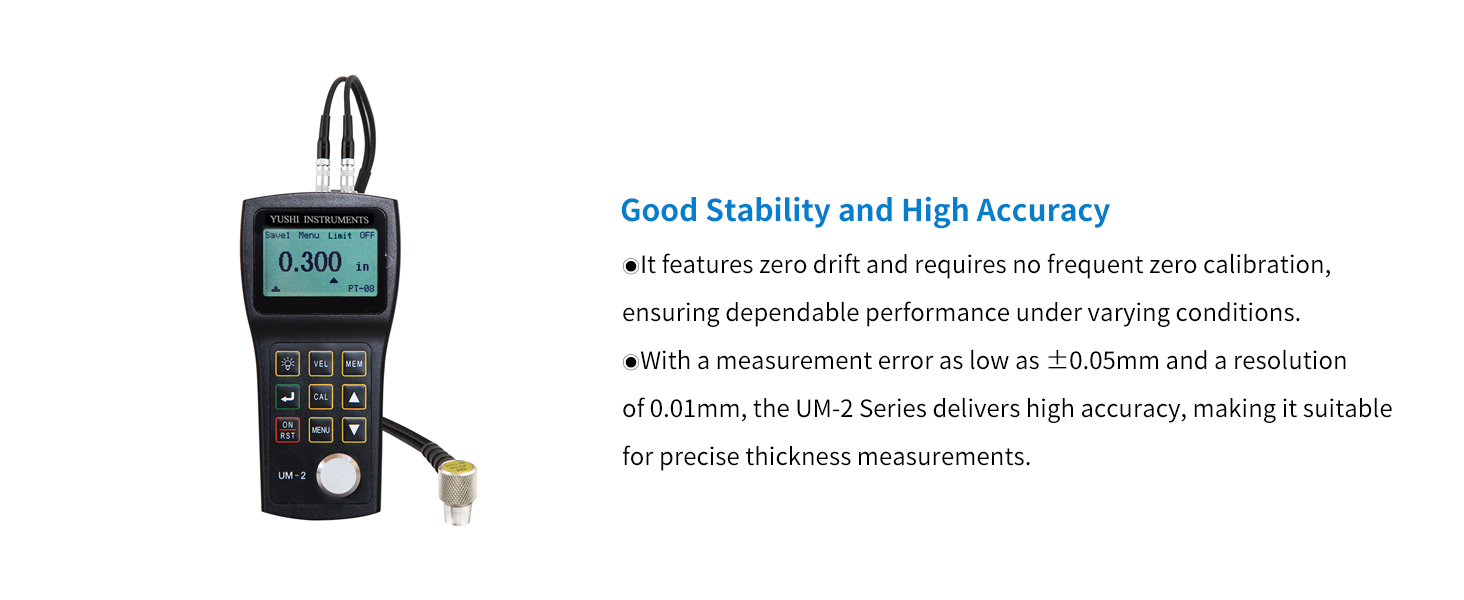

Accuracy: ±0.1 mm
Automatic V-Path Correction for curved surfaces
Warning Alarm when thickness exceeds preset limits
Data Storage: Stores up to 500 readings in 5 groups
USB or RS-232 Interface (optional) for PC connection
Long Battery Life: Up to 200 hours (without backlight)
Languages: English / Chinese
Backlit LCD Display for clear readings in low light
Applications
Corrosion and erosion inspection in metal pipelines or structures
Quality control in manufacturing processes

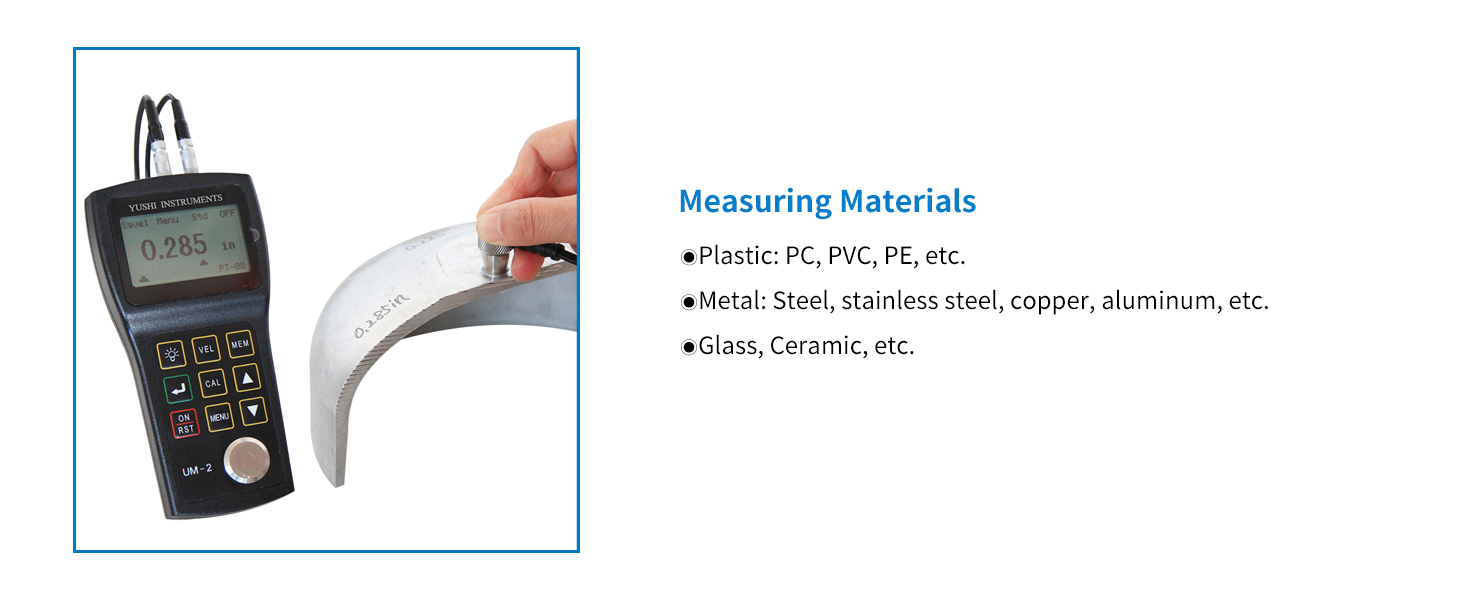

Measurement of painted or coated components
Testing of small tubes, cast iron, or high-temperature surfaces (with optional probes)
Technical Summary
Resolution: 0.01 mm / 0.001 in

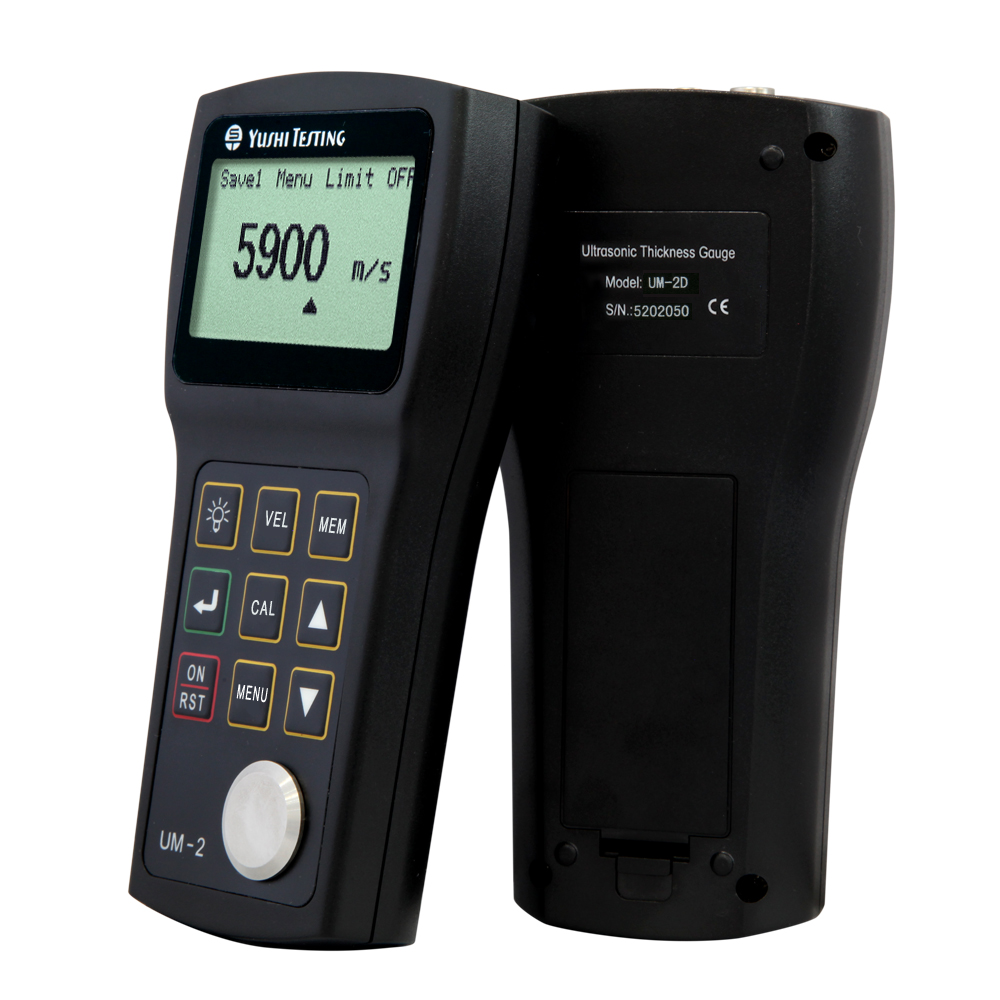

Material Velocity Range: 1000 – 9999 m/s
Display: 128×64 LCD with EL backlight
Operating Temp: -10°C to +50°C
Size / Weight: 149 × 73 × 32 mm / 210 g
Need accurate thickness results in a compact and user-friendly device?
Choose the YUSHI UM-2 Series — economical, proven, practical, and powerful.
